Nimatic Reversible Cleaner NRC-200 Incl. Air-Regulator

Nimatic Reversible Cleaner NRC-200 Incl. Air-Regulator

You must be logged in to be able to place orders
Model/Product no.: 402004

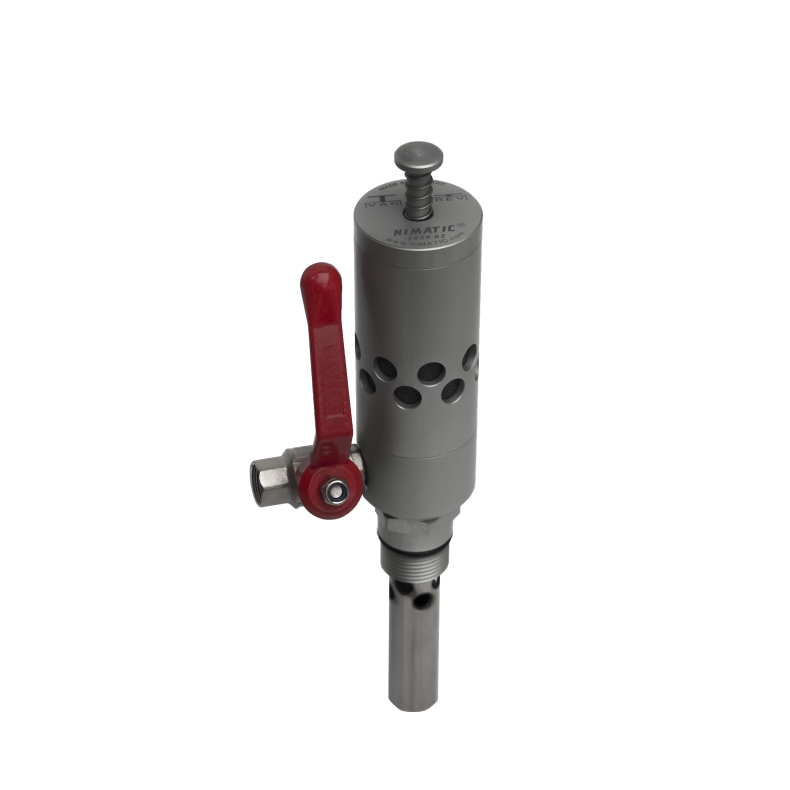

Nimatic Reversible Cleaner NRC-200




Reversible Machine Lumber

The Nimatic NRC-200 is powered by compressed air. Tested by reversing to a Max. pressure in the barrel of 0.25 Bar (at 2.5 Bar input). This pressure is secured with a Pilot valve which is pre-adjusted from Nimatic. Pilot valve must be checked regularly to ensure correct pressure. Checking is easily done by removing the top and pressing with a finger to see if the pilot valve operates freely.
Max. working pressure 2.5 Bar.
Recommended working pressure 2 Bar.

Suction/reverse unit comes with:
1. Ball valve
2. Reverse button
3. "Exhaust" Filter
4. Float protection (protects against overfilling)
5. Bottom pipe (cut to a suitable length)
6. Pipe bend / Adapter piece
7. 1.5 meter hose
8. Transition piece
9. Extension tube
10. Corner (narrow passages) nozzle
11. Floor / Tub nozzle
